Deep Learning Reference Stack

This guide gives examples for using the Deep Learning Reference stack to run real-world usecases, as well as benchmarking workloads for TensorFlow*, PyTorch*, and Kubeflow* in Clear Linux* OS.

Overview

We created the Deep Learning Reference Stack to help AI developers deliver the best experience on Intel® Architecture. This stack reduces complexity common with deep learning software components, provides flexibility for customized solutions, and enables you to quickly prototype and deploy Deep Learning workloads. Use this guide to run benchmarking workloads on your solution.

The latest release of the Deep Learning Reference Stack (DLRS V6.0 ) supports the following features:

  • TensorFlow* 1.15 and TensorFlow* 2.2.0(rc1), an end-to-end open source platform for machine learning (ML).

  • PyTorch* 1.4, an open source machine learning framework that accelerates the path from research prototyping to production deployment.

  • PyTorch Lightning* which is a lightweight wrapper for PyTorch designed to help researchers set up all the boilerplate state-of-the-art training.

  • Transformers* which is a state-of-the-art Natural Language Processing (NLP) library for TensorFlow 2.0 and PyTorch

  • Flair*, a PyTorch NLP framework

  • OpenVINO™ model server version 2020.1, delivering improved neural network performance on Intel processors, helping unlock cost-effective, real-time vision applications.

  • Intel® Deep Learning Boost (Intel® DL Boost) with AVX-512 Vector Neural Network Instruction (Intel® AVX-512 VNNI), designed to accelerate deep neural network-based algorithms.

  • Deep Learning Compilers (TVM* 0.6), an end-to-end compiler stack.

Important

To take advantage of the Intel® AVX-512 and VNNI functionality (including the Intel® oneAPI Deep Neural Network Library (oneDNN), found at oneDNN. with the Deep Learning Reference Stack, you must use the following hardware:

  • Intel® AVX-512 images require an Intel® Xeon® Scalable processor

  • VNNI requires a 2nd generation Intel® Xeon® Scalable processor

Releases

Refer to the Deep Learning Reference Stack website for information and download links for the different versions and offerings of the stack.

  • DLRS V6.0 release announcement.

  • DLRS V5.0 release announcement.

  • DLRS V4.0 release announcement, including benchmark results.

  • DLRS V3.0 release announcement, including benchmark results.

  • DLRS V2.0 including PyTorch benchmark results.

  • DLRS V1.0 including TensorFlow benchmark results.

  • DLRS Release notes on Github* for the latest release of Deep Learning Reference Stack.

Note

The Deep Learning Reference Stack is a collective work, and each piece of software within the work has its own license. Please see the DLRS Terms of Use for more details about licensing and usage of the Deep Learning Reference Stack.

Version compatibility

We validated the steps in this guide against the following software package versions, unless otherwise stated:

  • Clear Linux OS 31290 (Minimum supported version)

  • Docker 19.03

  • Kubernetes 1.11.3

  • Go 1.11.12

Note

The Deep Learning Reference Stack was developed to provide the best user experience when executed on a Clear Linux OS host. However, as the stack runs in a container environment, you should be able to complete the following sections of this guide on other Linux* distributions, provided they comply with the Docker*, Kubernetes* and Go* package versions listed above. Look for your distribution documentation on how to update packages and manage Docker services.

Prerequisites

  • Install Clear Linux OS on your host system

  • Add the containers-basic bundle

  • Add the cloud-native-basic bundle

In Clear Linux OS, containers-basic includes Docker*, which is required for TensorFlow and PyTorch benchmarking. Use the swupd utility to check if containers-basic and cloud-native-basic are present:

sudo swupd bundle-list

To install the containers-basic or cloud-native-basic bundles, enter:

sudo swupd bundle-add containers-basic cloud-native-basic

Docker is not started upon installation of the containers-basic bundle. To start Docker, enter:

sudo systemctl start docker

To ensure that Kubernetes is correctly installed and configured, follow the instructions in Kubernetes*.

Warning

Note that although the DLRS images and dockerfiles may be modified for your needs, there are some modifications that may cause unexpected or undesirable results. For example, using the Clear Linux swupd bundle-add command to add packages to a Clear Linux based container may overwrite the DLRS core components. Please use care when modifying the contents of the containers. If recaving Errors using the Clear Linux swupd bundle-add command try running the Clear Linux swupd clean command first.

Kubectl

You can use kubectl to run commands against your Kubernetes cluster. Refer to the kubectl overview for details on syntax and operations. Once you have a working cluster on Kubernetes, use the following YAML script to start a pod with a simple shell script, and keep the pod open.

  1. Copy this example.yaml script to your system:

    apiVersion: v1
kind: Pod
metadata:
  name: example-pod
  labels:
    app: ex-pod
spec:
  containers:
  - name: ex-pod-container
    image: sysstacks/dlrs-tensorflow-clearlinux:latest
    command: ['/bin/bash', '-c', '--']
    args: [ "while true; do sleep 30; done" ]

  2. Execute the script with kubectl:

    kubectl apply –f <path-to-yaml-file>/example.yaml

This script opens a single pod and is helpful to verify your setup is complete and correct. More robust solutions would create a deployment or inject a python script or larger shell script into the container.

TensorFlow single and multi-node benchmarks

This section describes running the TensorFlow Benchmarks in single node. For multi-node testing, replicate these steps for each node. These steps provide a template to run other benchmarks, provided that they can invoke TensorFlow.

Note

Performance test results for the Deep Learning Reference Stack and for this guide were obtained using runc as the runtime.

  1. Download either the TensorFlow Eigen or the TensorFlow oneDNN Docker image from Docker Hub.

  2. Run the image with Docker:

    docker run --name <image name>  --rm -ti <sysstacks/dlrs-tensorflow-clearlinux> bash

    Note

    Launching the Docker image with the -i argument starts interactive mode within the container. Enter the following commands in the running container.

  3. Clone the benchmark repository in the container:

    git clone http://github.com/tensorflow/benchmarks -b cnn_tf_v1.13_compatible

  4. Execute the benchmark script:

    python benchmarks/scripts/tf_cnn_benchmarks/tf_cnn_benchmarks.py --device=cpu --model=resnet50 --data_format=NHWC

Note

You can replace the model with one of your choice supported by the TensorFlow benchmarks.

If you are using an FP32 based model, it can be converted to an int8 model using Intel® quantization tools.

PyTorch single and multi-node benchmarks

This section describes running the PyTorch benchmarks for Caffe2 in single node.

  1. Download either the PyTorch with OpenBLAS or the PyTorch with Intel oneDNN Docker image from Docker Hub.

  2. Run the image with Docker:

    docker run --name <image name>  --rm -i -t <clearlinux/stacks-pytorch-TYPE> bash

    Note

    Launching the Docker image with the -i argument starts interactive mode within the container. Enter the following commands in the running container.

  3. Clone the benchmark repository:

    git clone https://github.com/pytorch/pytorch.git

  4. Execute the benchmark script:

    cd pytorch/caffe2/python
python convnet_benchmarks.py --batch_size 32 \
                      --cpu \
                      --model AlexNet

TensorFlow Training (TFJob) with Kubeflow and DLRS

Warning

If you choose the Intel® oneDNN image, your platform must support the Intel® AVX-512 instruction set. Otherwise, an illegal instruction error may appear, and you won’t be able to complete this guide.

A TFJob is Kubeflow’s custom resource used to run TensorFlow training jobs on Kubernetes. This example shows how to use a TFJob within the DLRS container.

Pre-requisites:

  1. Deploying Kubeflow with kfctl/kustomize in Clear Linux OS

Note

This example proposes a Kubeflow installation using kfctl. Please download the kfctl tarball to complete the following steps

  1. Download, untar and add to your PATH if necessary

    KFCTL_URL="https://github.com/kubeflow/kubeflow/releases/download/v0.6.1/kfctl_v0.6.1_linux.tar.gz"
wget -P ${KFCTL_URL} ${KFCTL_PATH}
tar -C ${KFCTL_PATH} -xvf ${KFCTL_PATH}/kfctl_v${kfctl_ver}_linux.tar.gz
export PATH=$PATH:${KFCTL_PATH}

  2. Install Kubeflow resource and TFJob operators

    # Env variables needed for your deployment
export KFAPP="<your choice of application directory name>"
export CONFIG="https://raw.githubusercontent.com/kubeflow/manifests/master/kfdef/kfctl_k8s_istio.yaml"

kfctl init ${KFAPP} --config=${CONFIG} -V
cd ${KFAPP}

# deploy Kubeflow:
kfctl generate k8s -V
kfctl apply k8s -V

  3. List the resources

    Deployment takes around 15 minutes (or more depending on the hardware) to be ready to use. After that you can use kubectl to list all the Kubeflow resources deployed and monitor their status.

    kubectl get pods -n kubeflow

Submitting TFJobs

We provide DLRS TFJob examples that use the Deep Learning Reference Stack as the base image for creating the containers to run training workloads in your Kubernetes cluster.

Customizing a TFJob

A TFJob is a resource with a YAML representation like the one below. Edit to use the DLRS image containing the code to be executed and modify the command for your own training code.

If you’d like to modify the number and type of replicas, resources, persistent volumes and environment variables, please refer to the Kubeflow documentation

apiVersion: kubeflow.org/v1beta2
kind: TFJob
metadata:
  generateName: tfjob
  namespace: kubeflow
spec:
  tfReplicaSpecs:
    PS:
      replicas: 1
      restartPolicy: OnFailure
      template:
        spec:
          containers:
          - name: tensorflow
            image: dlrs-image
            command:
              - python
              - -m
              - trainer.task
              - --batch_size=32
              - --training_steps=1000
    Worker:
      replicas: 3
      restartPolicy: OnFailure
      template:
        spec:
          containers:
          - name: tensorflow
            image: dlrs-image
            command:
              - python
              - -m
              - trainer.task
              - --batch_size=32
              - --training_steps=1000
    Master:
          replicas: 1
          restartPolicy: OnFailure
          template:
            spec:
              containers:
              - name: tensorflow
                image: dlrs-image
                command:
                  - python
                  - -m
                  - trainer.task
                  - --batch_size=32
                  - --training_steps=1000

Results of running this section

You must parse the logs of the Kubernetes pod to retrieve performance data. The pods will still exist post-completion and will be in ‘Completed’ state. You can get the logs from any of the pods to inspect the benchmark results. More information about Kubernetes logging is available in the Kubernetes Logging Architecture documentation.

For more information, please refer to: * Distributed TensorFlow * TFJobs

PyTorch Training (PyTorch Job) with Kubeflow and DLRS

A PyTorch Job is Kubeflow’s custom resource used to run PyTorch training jobs on Kubernetes. This example builds on the framework set up in the previous example.

Pre-requisites:

  • A running Kubernetes* cluster

  • Please follow steps 1 - 5 of the previous example to set up your environment.

Submitting PyTorch Jobs

We provide DLRS PytorchJob examples that use the Deep Learning Reference Stack as the base image for creating the container(s) that will run training workloads in your Kubernetes cluster.

Working with Horovod* and OpenMPI*

Horovod is a distributed training framework for TensorFlow, Keras, and PyTorch. The OpenMPI Project is an open source Message Passing Interface implementation. Running Horovod on OpenMPI will let us enable distributed training on DLRS.

The following deployment uses Kubeflow OpenMPI instructions, meaning you can replace the following variables to have a working Kubernetes cluster with openmpi workers for distributed training.

To begin, refer to the instructions above to set up a Kubernetes cluster on Clear Linux. You will need to build and push the DLRS docker image with Horovod and OpenMPI enabled, modifying the dockerfile to build your image

Building the Image

  1. DLRS is part of the Intel stacks GitHub repository. Clone the stacks repository.

    git clone https://github.com/intel/stacks.git

  2. Create the ssh-entrypoint.sh script by copying the following into a file in the stacks/dlrs/clearlinux/tensorflow/mkl directory

    #! /usr/bin/env bash
set -o errexit

mkdir -p /etc/ssh /var/run/sshd

# Allow OpenSSH to talk to containers without asking for confirmation
cat << EOF > /etc/ssh/ssh_config
StrictHostKeyChecking no
Port 2022
UserKnownHostsFile=/dev/null
PasswordAuthentication no
EOF

/usr/sbin/ssh-keygen -A

  3. Inside the stacks/dlrs/clearlinux/tensorflow/mkl directory, modify the Dockerfile.builder file to add the openssh-server to the container.

    # update os and add required bundles
RUN swupd bundle-add git curl wget \
    java-basic sysadmin-basic package-utils \
    devpkg-zlib go-basic devpkg-tbb openssh-server

  4. To execute the ssh-entrypoint.sh in the container, add these lines to the Dockerfile.builder file

    COPY ssh-entrypoint.sh /bin/ssh-entrypoint.sh
RUN chmod +x /bin/ssh-entrypoint.sh
RUN ssh-entrypoint.sh

    Note

    The ssh-entrypoint.sh script will generate ssh host keys for the docker image, but they will be the same every time the image is built.

  5. Build the container with

    make

    Note

    More detail on building the container can be found on the Intel stacks GitHub repository

Using the new image with Horovod and OpenMPI

To use the new image we will follow the Kubeflow OpenMPI instructions. You will not need to follow the Installation section, as we have just completed that for the DLRS container.

  1. Generate and deploy Kubeflow’s openmpi component.

    Create a namespace for kubeflow deployment.
kubectl delete namespace kubeflow
NAMESPACE=kubeflow
kubectl create namespace ${NAMESPACE}

# Generate one-time ssh keys used by Open MPI.
SECRET=openmpi-secret
mkdir -p .tmp
yes | ssh-keygen -N "" -f .tmp/id_rsa -C ""
kubectl delete secret ${SECRET} -n ${NAMESPACE} || true
kubectl create secret generic ${SECRET} -n ${NAMESPACE} --from-file=id_rsa=.tmp/id_rsa --from-file=id_rsa.pub=.tmp/id_rsa.pub --from-file=authorized_keys=.tmp/id_rsa.pub

# Which version of Kubeflow to use.
# For a list of releases refer to:
# https://github.com/kubeflow/kubeflow/releases
VERSION=master

# Initialize a ksonnet app. Set the namespace for its default environment.
APP_NAME=openmpi
ks init ${APP_NAME}
cd ${APP_NAME}
ks env set default --namespace ${NAMESPACE}

# Install Kubeflow components.
ks registry add kubeflow github.com/kubeflow/kubeflow/tree/${VERSION}/kubeflow
ks pkg install kubeflow/openmpi@${VERSION}

# See the list of supported parameters.

# Generate openmpi components.
COMPONENT=openmpi
IMAGE=<image name>

  2. Run openmpi workers in containers

    WORKERS=<set number of workers>
MEMORY=<memory>
GPU=0

# We should create a hostfile with the names of each node in the k8s cluster
EXEC="mpiexec --allow-run-as-root -np ${WORKERS} --hostfile /kubeflow/openmpi/assets/hostfile -bind-to none -map-by slot sh -c 'python <path_to_benchmarks_scripts> --device=cpu --data_format=NHWC --model=alexnet --variable_update=horovod --horovod_device=cpu'"

ks generate openmpi ${COMPONENT} --image ${IMAGE} --secret ${SECRET} --workers ${WORKERS} --gpu ${GPU} --exec "${EXEC}" --memory "${MEMORY}"

# Deploy to your cluster.
ks apply default
WORKERS=<set number of workers>
MEMORY=<memory>
GPU=0

# We should create a hostfile with the names of each node in the k8s cluster
EXEC="mpiexec --allow-run-as-root -np ${WORKERS} --hostfile /kubeflow/openmpi/assets/hostfile -bind-to none -map-by slot sh -c 'python <path_to_benchmarks_scripts> --device=cpu --data_format=NHWC --model=alexnet --variable_update=horovod --horovod_device=cpu'"

ks generate openmpi ${COMPONENT} --image ${IMAGE} --secret ${SECRET} --workers ${WORKERS} --gpu ${GPU} --exec "${EXEC}" --memory "${MEMORY}"

# Deploy to your cluster.
ks apply default

Using Transformers* for Natural Language Processing

The DLRS v5.0 release includes Transformers, a state-of-the-art Natural Language Processing (NLP) library for TensorFlow 2.0 and PyTorch. The library is configured to work within the container environment.

In this section we use a Jupyter Notebook from inside the container to walk through one of the notebooks shown in the Transformers repository.

To run the notebook, you will need to run the Deep Learning Reference Stack, mount it to disk and connect a Jupyter Notebook port.

  1. Run the DLRS image with Docker:

    docker run -it -v ${PWD}:/workspace -p 8888:8888 clearlinux/stacks-pytorch-mkl:latest

  2. From within the container, navigate to the workspace, and clone the transformers repository in the container:

    cd workspace
git clone https://gist.github.com/16d38f2c9c688963c166c000330a3c11.git

  3. Start a Jupyter Notebook that is linked to the exterior port. Be sure to copy the token from the output of starting Jupyter Notebook.

    pip install jupyter --upgrade
jupyter notebook --ip 0.0.0.0 --no-browser --allow-root

  4. To access the Jupyter Notebook, open a browser.

  5. Return to the Terminal where you launched Jupyter Notebook. Copy one of the URLs that appears after “Or copy and paste on of these URLs.”

  6. Paste the URL (with embedded token) into the browser window.

The notebook will also be available at the URL of the system serving the notebook. For example if you are running on 192.168.1.10, you will be able to access the notebook from other systems on that subnet by navigating to http://192.168.1.10:8888

From the browser, you will see the following notebooks.

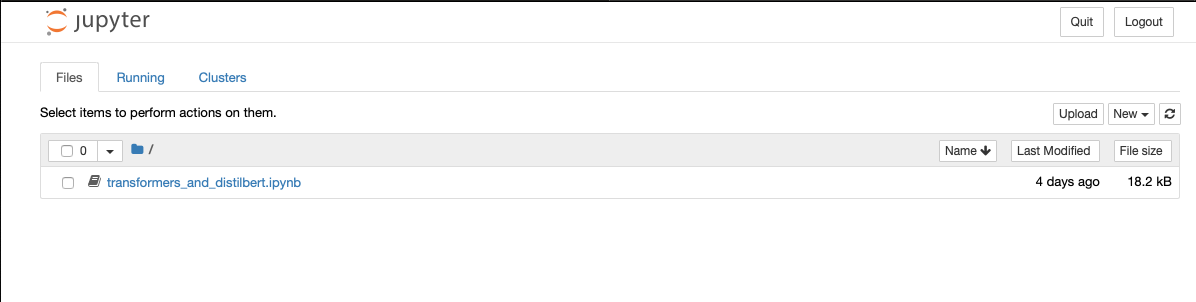

Transformers Jupyter Notebooks

Figure 1: Transformers Jupyter Notebooks

This example along with the other notebooks show how to get up and running with Transformers. More detail on using Transformers* is available through the Transformers github repository.

Using the OpenVINO™ Model Optimizer

The OpenVINO™ toolkit has two primary tools for deep learning, the inference engine and the model optimizer. The inference engine is integrated into the Deep Learning Reference Stack. It is better to use the model optimizer after training the model, and before inference begins. This example will explain how to use the model optimizer by going through a test case with a pre-trained TensorFlow model.

This example uses resources found in the following OpenVINO™ toolkit documentation.

Converting a TensorFlow Model

Converting TensorFlow Object Detection API Models

In this example, you will:

  • Download a TensorFlow model

  • Clone the Model Optimizer

  • Install Prerequisites

  • Run the Model Optimizer

  1. Download a TensorFlow model

    We will be using an OpenVINO™ toolkit supported topology with the Model Optimizer. We will use a TensorFlow Inception V2 frozen model.

    Navigate to the OpenVINO TensorFlow Model page. Then scroll down to the second section titled “Supported Frozen Topologies from TensorFlow Object Detection Models Zoo” and download “SSD Inception V2 COCO.”

    Unpack the file into your chosen working directory. For example, if the tar file is in your Downloads folder and you have navigated to the directory you want to extract it into, run:

    tar -xvf ~/Downloads/ssd_inception_v2_coco_2018_01_28.tar.gz

  2. Clone the Model Optimizer

    Next we need the model optimizer directory, named dldt. This example assumes the parent directory is on the same level as the model directory, ie:

    +--Working_Directory
   +-- ssd_inception_v2_coco_2018_01_28
   +-- dldt

    To clone the Model Optimizer, run this from inside the working directory:

    git clone https://github.com/opencv/dldt.git

    If you explore the dldt directory, you’ll see both the inference engine and the model optimizer. We are only concerned with the model optimizer at this stage. Navigating into the model optimizer folder you’ll find several python scripts and text files. These are the scripts you call to run the model optimizer.

  3. Install Prerequisites for Model Optimizer

    Install the Python packages required to run the model optimizer by running the script dldt/model-optimizer/install_prerequisites/install_prerequisites_tf.sh.

    cd dldt/model-optimizer/install_prerequisites/
./install_prerequisites_tf.sh
cd ../../..

  4. Run the Model Optimizer

    Running the model optimizer is as simple as calling the appropriate script, however there are many configuration options that are explained in the documentation

    python dldt/model-optimizer/mo_tf.py \
--input_model=ssd_inception_v2_coco_2018_01_28/frozen_inference_graph.pb \
--tensorflow_use_custom_operations_config dldt/model-optimizer/extensions/front/tf/ssd_v2_support.json \
--tensorflow_object_detection_api_pipeline_config ssd_inception_v2_coco_2018_01_28/pipeline.config \
--reverse_input_channels

    You should now see three files in your working directory, frozen_inference_graph.bin, frozen_inference_graph.mapping, and frozen_inference_graph.xml. These are your new models in the Intermediate Representation (IR) format and they are ready for use in the OpenVINO™ Inference Engine.

Using the OpenVINO™ toolkit Inference Engine

This example walks through the basic instructions for using the inference engine.

  1. Starting the Model Server

    The process is similar to how we start Jupter notebooks on our containers

    Run this command to spin up a OpenVINO™ toolkit model fetched from GCP

    docker run -p 8000:8000 stacks-dlrs-mkl:latest bash -c ". /workspace/scripts/serve.sh && ie_serving model --model_name resnet --model_path gs://public-artifacts/intelai_public_models/resnet_50_i8 --port 8000"

    Once the server is setup, use a grpc client to communicate with served model:

    git clone https://github.com/IntelAI/OpenVINO-model-server.git
cd OpenVINO-model-server
pip install -q -r OpenVINO-model-server/example_client/client_requirements.txt
pip install --user -q -r OpenVINO-model-server/example_client/client_requirements.txt
cat OpenVINO-model-server/example_client/client_requirements.txt
cd OpenVINO-model-server/example_client

python jpeg_classification.py --images_list input_images.txt --grpc_address localhost --grpc_port 8000 --input_name data --output_name prob --size 224 --model_name resnet

    The results of these commands will look like this:

    start processing:
       Model name: resnet
       Images list file: input_images.txt
images/airliner.jpeg (1, 3, 224, 224) ; data range: 0.0 : 255.0
Processing time: 97.00 ms; speed 2.00 fps 10.35
Detected: 404  Should be: 404
images/arctic-fox.jpeg (1, 3, 224, 224) ; data range: 0.0 : 255.0
Processing time: 16.00 ms; speed 2.00 fps 63.89
Detected: 279  Should be: 279
images/bee.jpeg (1, 3, 224, 224) ; data range: 0.0 : 255.0
Processing time: 14.00 ms; speed 2.00 fps 69.82
Detected: 309  Should be: 309
images/golden_retriever.jpeg (1, 3, 224, 224) ; data range: 0.0 : 255.0
Processing time: 13.00 ms; speed 2.00 fps 75.22
Detected: 207  Should be: 207
images/gorilla.jpeg (1, 3, 224, 224) ; data range: 0.0 : 255.0
Processing time: 11.00 ms; speed 2.00 fps 87.24
Detected: 366  Should be: 366
images/magnetic_compass.jpeg (1, 3, 224, 224) ; data range: 0.0 : 247.0
Processing time: 11.00 ms; speed 2.00 fps 91.07
Detected: 635  Should be: 635
images/peacock.jpeg (1, 3, 224, 224) ; data range: 0.0 : 255.0
Processing time: 9.00 ms; speed 2.00 fps 110.1
Detected: 84  Should be: 84
images/pelican.jpeg (1, 3, 224, 224) ; data range: 0.0 : 255.0
Processing time: 10.00 ms; speed 2.00 fps 103.63
Detected: 144  Should be: 144
images/snail.jpeg (1, 3, 224, 224) ; data range: 0.0 : 248.0
Processing time: 10.00 ms; speed 2.00 fps 104.33
Detected: 113  Should be: 113
images/zebra.jpeg (1, 3, 224, 224) ; data range: 0.0 : 255.0
Processing time: 12.00 ms; speed 2.00 fps 83.04
Detected: 340  Should be: 340
Overall accuracy= 100.0 %
Average latency= 19.8 ms

Using Seldon and OpenVINO™ model server with the Deep Learning Reference Stack

Seldon Core is an open source platform for deploying machine learning models on a Kubernetes cluster. In this section we will walk through using a Seldon server with OpenVINO™ model server.

Pre-requisites

  • A running Kubernetes* cluster

  • An existing Kubeflow deployment

  • Helm

  • A pre-trained model

Please refer to:

Note

This document was validated with Kubernetes v1.14.8, Kubeflow v0.7, and Helm v3.0.1

Prepare the model

There are several methods to add a model to a Seldon server; we will cover two of them. First a model will be stored in a persistent volume by creating a persistent volume claim and a pod, then copying the model into the pod. Second, a model will be built directly into the base image. Adding a model to a volume is perhaps more traditional in Kubernetes, but some cloud providers have access rules that disallow a private cluster, and adding the model to the image avoids the issue in that scenario.

Mount pre-trained models into a persistent volume

We will create a small pod to get the model into a volume.

  1. Apply all PV manifests to the cluster

    kubectl apply -f storage/pv-volume.yaml
kubectl apply -f storage/model-store-pvc.yaml
kubectl apply -f storage/pv-pod.yaml

  2. Use kubectl cp to move the model into the pod, and therefore into the volume

    kubectl cp ./<your model file> pv-pod:/home

  3. In the running container, fetch your pre-trained models and save them in the /opt/ml directory path.

    root@hostpath-pvc:/# cd /opt/ml
root@hostpath-pvc:/# # Copy your models here
root@hostpath-pvc:/# # exit

Add the pre-trained model to the image

A custom DLRS image is provided to serve OpenVINO™ model server through Seldon. Add a curl command to download your publicly hosted model and save it in /opt/ml in the container filesystem. For example, if you have a model on GCP, use this command:

curl -o "[SAVE_TO_LOCATION]" \
"https://storage.googleapis.com/storage/v1/b/[BUCKET_NAME]/o/[OBJECT_NAME]?alt=media"

Prepare the DLRS image

A base image with Seldon and the OpenVINO™ inference engine should be created using the Dockerfile_openvino_base dockerfile.

cd docker
docker build -f Dockerfile_openvino_base -t dlrs_openvino_base .
cd ..

Deploy the model server

Now you’re ready to deploy the model server using the Helm chart provided.

cd helm
helm install dlrs-seldon seldon-model-server \
    --namespace kubeflow \
    --set openvino.image=dlrs_openvino_base \
    --set openvino.model.path=/opt/ml \
    --set openvino.model.name=<model_name> \
    --set openvino.model.input=data \
    --set openvino.model.output=prob

This will create your SeldonDeployment

Extended example with Seldon using Source to Image

Source to Image (s2i) is a tool to create docker images from source code.

  1. Install source to image (s2i)

    cd ${SRC-DIR}
wget https://github.com/openshift/source-to-image/releases/download/v1.1.14/source-to-image-v1.1.14-874754de-linux-amd64.tar.gz
tar xf source-to-image-v1.1.14-874754de-linux-amd64.tar.gz
mv s2i ${BIN_DIR}/s2i && ln -s s2i ${BIN_DIR}/sti

  2. Clone the seldon-core repository

    git clone https://github.com/SeldonIO/seldon-core.git ${SRC_DIR}/seldon-core

  3. Create the new image

    Using the DLRS image created above, you can build another image for deploying the Image Transformer component that consumes imagenet classificatin models.

    cd ${SRC_DIR}/seldon-core/examples/models/openvino_imagenet_ensemble/resources/transformer/
s2i -E environment_grpc . dlrs_openvino_base:0.1 imagenet_transformer:0.1

    Use this newly created image for deploying the Image Transformer component of the OpenVino Imagenet Pipelines example from Seldon.

Use Jupyter Notebook

This example uses the PyTorch with OpenBLAS container image. After it is downloaded, run the Docker image with -p to specify the shared port between the container and the host. This example uses port 8888.

docker run --name pytorchtest --rm -i -t -p 8888:8888 clearlinux/stacks-pytorch-oss bash

After you start the container, launch the Jupyter Notebook. This command is executed inside the container image.

jupyter notebook --ip 0.0.0.0 --no-browser --allow-root

After the notebook has loaded, you will see output similar to the following:

To access the notebook, open this file in a browser: file:///.local/share/jupyter/runtime/nbserver-16-open.html
Or copy and paste one of these URLs:
http://(846e526765e3 or 127.0.0.1):8888/?token=6357dbd072bea7287c5f0b85d31d70df344f5d8843fbfa09

From your host system, or any system that can access the host’s IP address, start a web browser with the following. If you are not running the browser on the host system, replace 127.0.0.1 with the IP address of the host.

http://127.0.0.1:8888/?token=6357dbd072bea7287c5f0b85d31d70df344f5d8843fbfa09

Your browser displays the following:

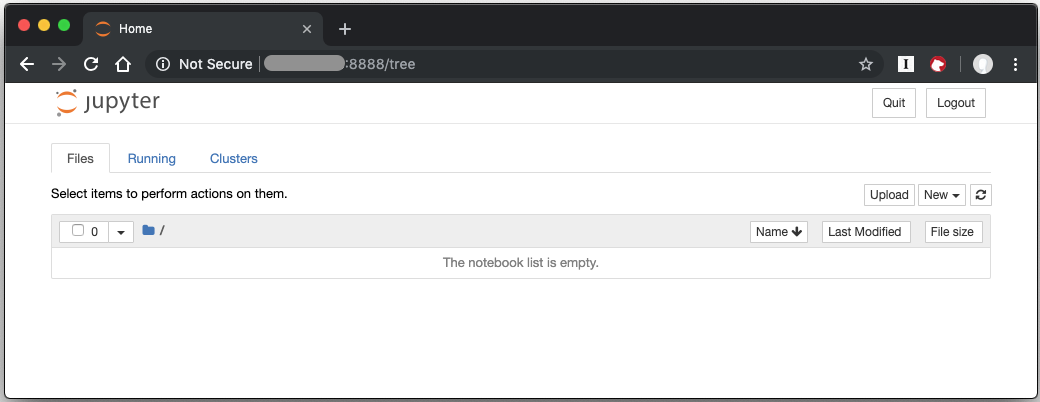

Jupyter Notebook

Figure 1: Jupyter Notebook

To create a new notebook, click New and select Python 3.

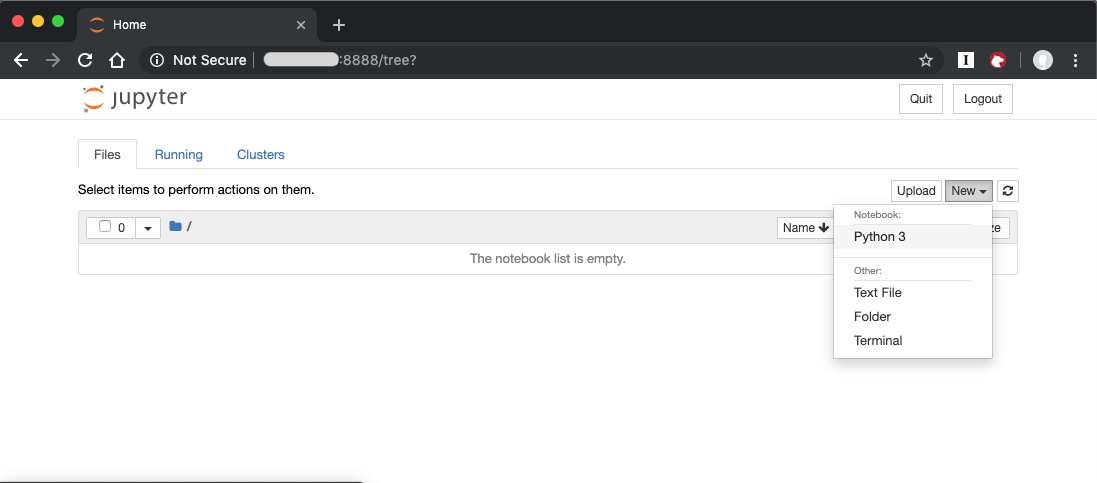

Create a new notebook

Figure 2: Create a new notebook

A new, blank notebook is displayed, with a cell ready for input.

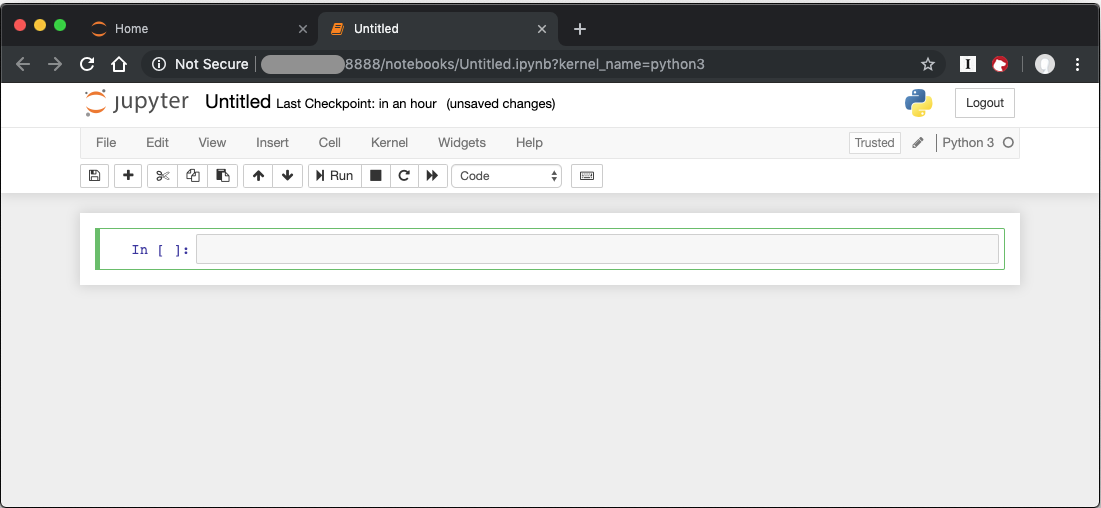

New blank notebook

Figure 3: New blank notebook

To verify that PyTorch is working, copy the following snippet into the blank cell, and run the cell.

from __future__ import print_function
import torch
x = torch.rand(5, 3)
print(x)

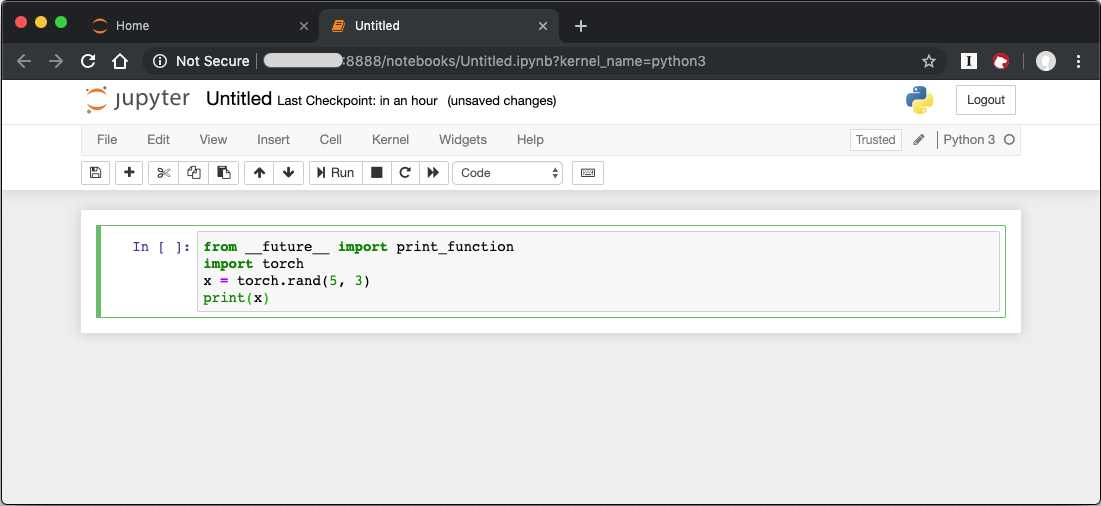

Sample code snippet

Figure 4: Sample code snippet

When you run the cell, your output will look something like this:

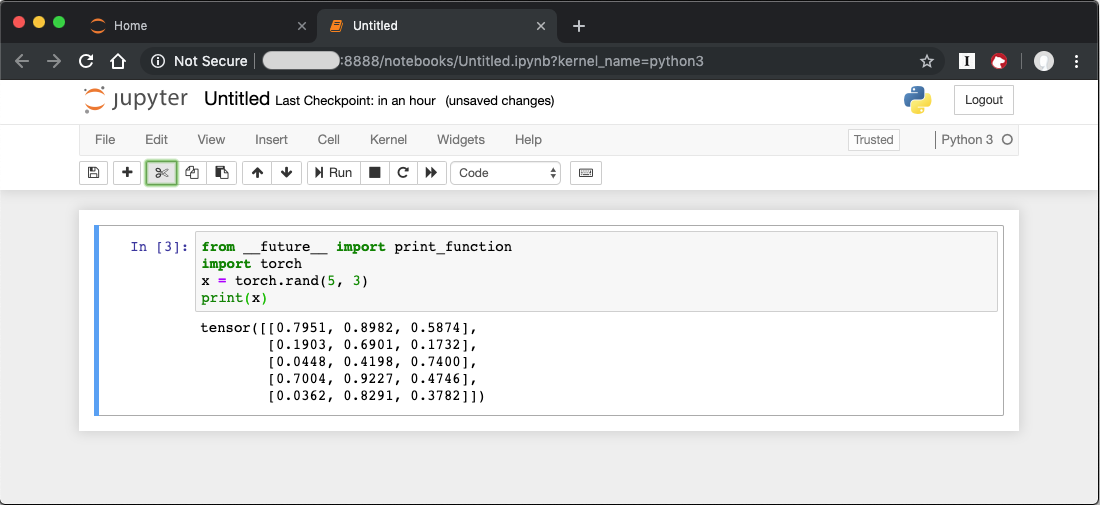

Code output

Figure 5: Code output

You can continue working in this notebook, or you can download existing notebooks to take advantage of the Deep Learning Reference Stack’s optimized deep learning frameworks. Refer to Jupyter Notebook for details.

Uninstallation

To uninstall the Deep Learning Reference Stack, you can choose to stop the container so that it is not using system resources, or you can stop the container and delete it to free storage space.

To stop the container, execute the following from your host system:

  1. Find the container’s ID

    docker container ls

    This will result in output similar to the following:

    CONTAINER ID        IMAGE                        COMMAND               CREATED             STATUS              PORTS               NAMES
e131dc71d339        sysstacks/dlrs-tensorflow-clearlinux   "/bin/sh -c 'bash'"   23 seconds ago      Up 21 seconds                           oss

  2. You can then use the ID or container name to stop the container. This example uses the name “oss”:

    docker container stop oss

  3. Verify that the container is not running

    docker container ls

  4. To delete the container from your system you need to know the Image ID:

    docker images

    This command results in output similar to the following:

    REPOSITORY                   TAG                 IMAGE ID            CREATED             SIZE
sysstacks/dlrs-tensorflow-clearlinux   latest              82757ec1648a        4 weeks ago         3.43GB
sysstacks/dlrs-tensorflow-clearlinux   latest              61c178102228        4 weeks ago         2.76GB

  5. To remove an image use the image ID:

    docker rmi 82757ec1648a

    # docker rmi 827
Untagged: sysstacks/dlrs-tensorflow-clearlinux:latest
Untagged: sysstacks/dlrs-tensorflow-clearlinux@sha256:381f4b604537b2cb7fb5b583a8a847a50c4ed776f8e677e2354932eb82f18898
Deleted: sha256:82757ec1648a906c504e50e43df74ad5fc333deee043dbfe6559c86908fac15e
Deleted: sha256:e47ecc039d48409b1c62e5ba874921d7f640243a4c3115bb41b3e1009ecb48e4
Deleted: sha256:50c212235d3c33a3c035e586ff14359d03895c7bc701bb5dfd62dbe0e91fb486

    Note that you can execute the docker rmi command using only the first few characters of the image ID, provided they are unique on the system.

  6. Once you have removed the image, you can verify it has been deleted with:

    docker images

Compiling AIXPRT for DLRS

To compile AIXPRT for DLRS, you will have to get the community edition of AIXPRT and update the compile_AIXPRT_source.sh file. AIXPRT utilizes build configuration files, so to build AIXPRT in the DLRS image, copy the build files from the base image by adding these commands to the end of the stacks-dlrs-mkl dockerfile:

COPY --from=base /dldt/inference-engine/bin/intel64/Release/ /usr/local/lib/openvino/tools/
COPY --from=base /dldt/ /dldt/
COPY ./airxprt/ /workspace/aixprt/
RUN ./aixprt/install_deps.sh
RUN ./aixprt/install_aixprt.sh

AIXPRT requires OpenCV. On Clear Linux OS, the OpenCV bundle also installs the DLDT components. To use AIXPRT in the DLRS environment you need to either remove the shared libraries for DLDT from /usr/lib64 before you run the tests, or ensure that the DLDT components in the /usr/local/lib are being used for AIXPRT. This can be achieved using adding LD_LIBRARY_PATH environment variable before testing.

export LD_LIBRARY_PATH=/usr/local/lib

The updates to the AIXPRT community edition have been captured in the diff file compile_AIXPRT_source.sh.patch. The core of these changes relate to the version of model files(2019_R1) we download from the OpenCV open model zoo and location of the build files, which in our case is /dldt. Please refer to the patch files and make changes as necessary to the compile_AIXPRT_source.sh file as required for your environment.
